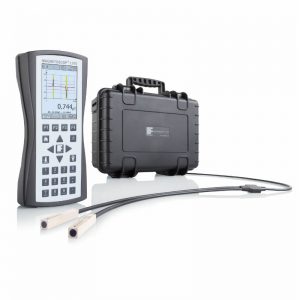

MAGNETOSCOP 1.070

The MAGNETOSCOP 1.070 is a portable magnetometer system with microprocessor and probes for measuring the magnetic flux density as an absolute or differential value (gradient). It has a USB port for simple data transfer and an SD card for saving measurement data and parameters.

Category: Tag:

MAGNETOSCOP 1.070 Compact Precision

The MAGNETOSCOP 1.070 is a portable magnetometer system with microprocessor and probes for measuring the magnetic flux density as an absolute or differential value (gradient). It has a USB port for simple data transfer and an SD card for saving measurement data and parameters. The measuring system also facilitates the recognition and saving of peak values and the adjustment of thresholds for limit values. The unit can be used for series and individual measurements. The data can be easily analyzed and documented with the PC software included in the scope of delivery. The MAGNETOSCOP 1.070 thus facilitates the portable and fast measurement of the relative permeability within the scope of the quality control of stainless steel and low-permeable (non-magnetic) alloys as well as the localization of ferrite enclosures. Changes in material (sulfidation, degradation of lamination, structural changes) can also be proven thanks to permeability comparative measurements.

Your advantages at a glance

  • Portable, microprocessor-controlled magnetometer system
  • Measure magnetic flux density, absolute or gradient
  • Probe for measurement of relative permeability µr in accordance with IEC 60404-15 and ASTM A342M
  • 3,5″ colour display
  • USB interface for data transfer

Measurement method

  • Fluxgates probes (absolute or gradient)
  • Hall-probes (absolute)

Applications

  • Long term monitoring of magnetic environmental conditions, e.g. prior to installation of magnetic sensitive devices e.g. MRI systems
  • Testing of feebly magnetic materials and machined components for magnetic remanence
  • Determine the demagnetization status of steel bars and components
  • Detection of ferrous inclusions in austenitic steels and nonferrous alloys
  • Surface inspection to detect inclusions in wear sensitive components like bearing rings
  • Determination of relative magnetic permeability as part of the quality inspection for austenitic steels and feebly magnetic / nonmagnetic alloys
  • Verify material changes caused by carburization, corrosion, coating reduction or micro structural alteration by permeability comparative measurement

Technical Data

  • Measuring range
 0,1 nT to 1 mT (Fluxgate Probes)
1 µT to 50 mT (Hall Probes)
µr 1,00000 to 2,00000
  • Uncertainty of field measurement
 1,5% of measuring value
Hall Probes:
1 µT to 40 mT      2% of the measured value
40 mT to 50 mT   4% of the measured value
  • Uncertainty of permeability measurement
 5% of measured value
  • Resolution
 24 Bit ADC
  • Dimensions measurement instrument
 212 x 102 x 41 mm
  • Weight measurement instrument incl. batteries
 0,62 kg
  • Protection grade
 IP 54
  • Ambient temperature
 0 to 40°C
  • Battery type
 4 pcs. Mignon, AA, LR6

Brochure

Download Brochure
